External-Driven Piezo Buzzer
  • Piezo Buzzer LPT1455B
  • Piezo Buzzer LPT1455B
Model LPT1455B-TO-05-3.5-12-7.6-R
Rated Voltage 5 Vp-p
Operating Voltage 1~25 Vp-p
Current Consumption ≤5 mA
Capacitance 12000±30% PF
Test distance 10 cm
SPL ≥85 dB @10cm
Resonant Frequency 3500~4000 Hz
Operating Temperature -40 ~ +85 ℃
Storage Temperature -40 ~ +90 ℃
Weight 0.65 g
Carton size 51.5×42×26 cm
Quantity 5000 pcs
Gross Weight 4.75 Kg
Previous  |  Next

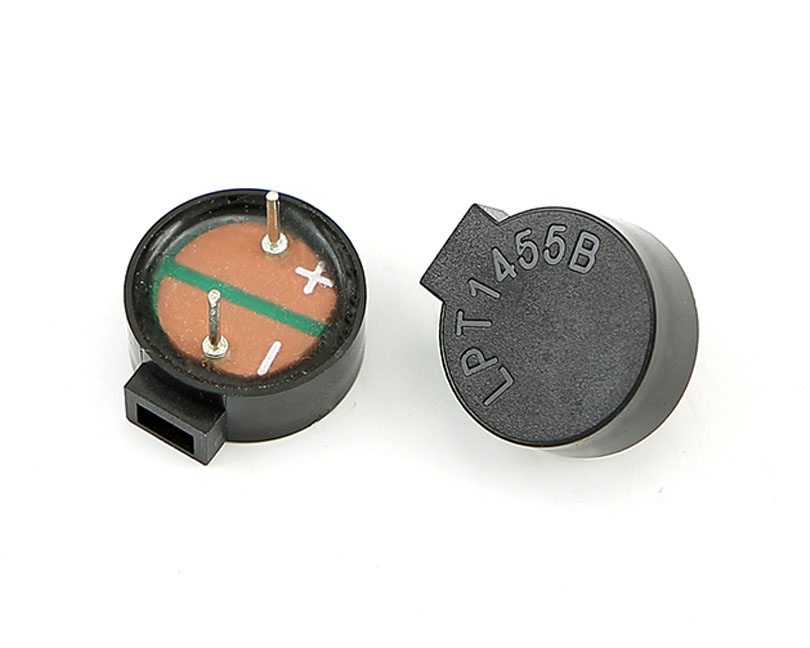

Piezo Buzzer LPT1455B

LPT1455B piezo buzzer, small size, low current, pin type buzzer. mainly used Security buzzer, Supermarket alarm.
